Specifications
General

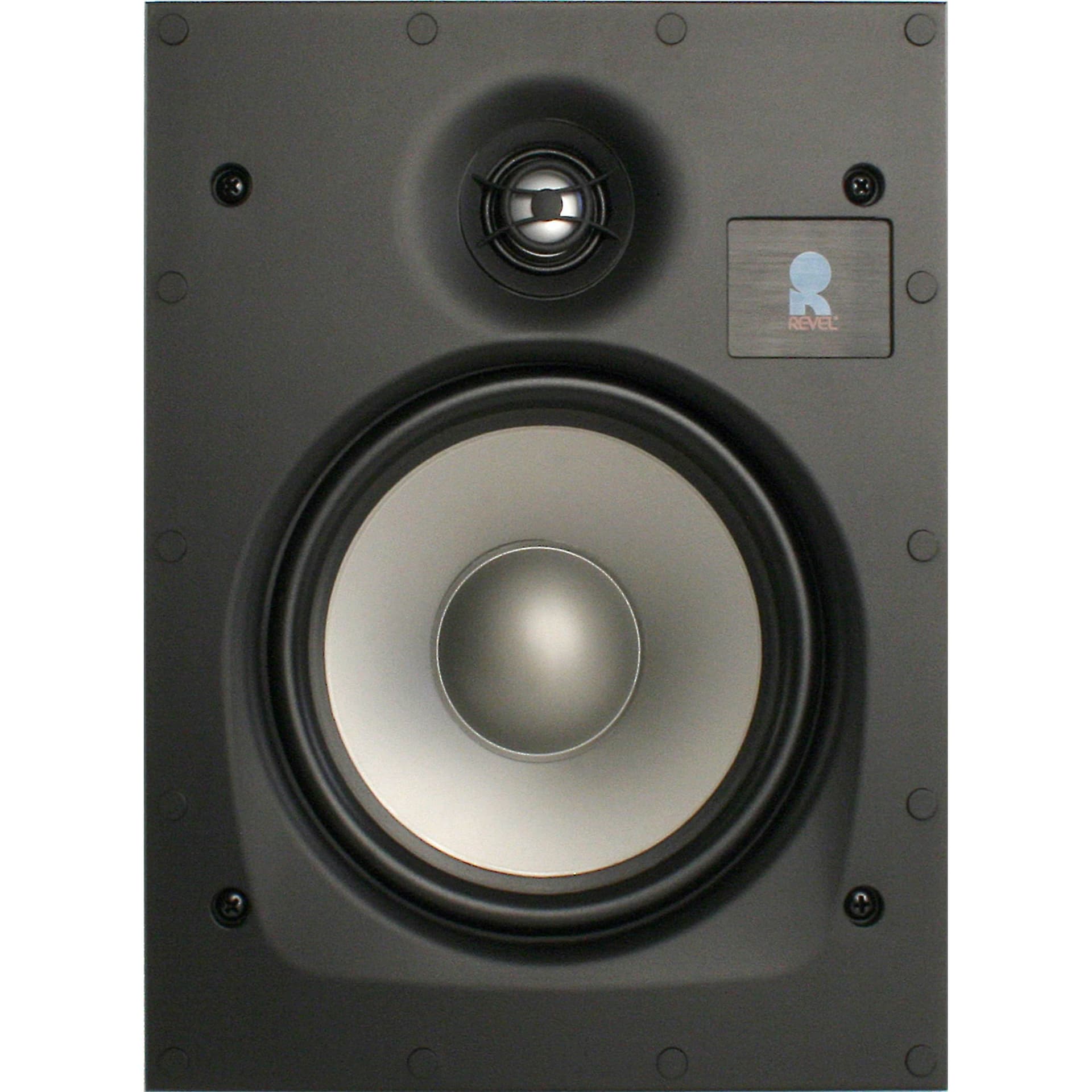

| Brand | Revel |
| Model | 265W363 |
| Weight | 3.8 lbs |
| Dimensions (W x H x D) | 7.3 x 24.9 x 3.6" |
Performance
| Sensitivity | 88dB |
| Impedance | 8ΩEasy to Drive |
| Freq Response Low | 55Hz |
| Freq Response High | 22000Hz |
| Driver Config | 2-way |
Power Handling
| Rec. Power Min | 10W |
| Rec. Power Max | 120W |
| Bi-Amp Capable | No |
Design
| Mounting Type | in-wall |
Installation
| Mounting Depth | 3.5625" |
| Cutout Width | 7.3" |
| Cutout Height | 9.8" |
| Back Box Included | No |
| Back Box Required | No |
| Paintable Grille | Yes |
| Magnetic Grille | Yes |
Additional Specs
| Wall Thickness Min | 0.5" |
| Wall Thickness Max | 1" |
| Connector Type | spring-post terminals (bare wire up to 10AWG, single/dual banana plugs) |
| Angle Adjustable | No |
| Treble Attenuation Switch | No |
| LCR Capable | No |
| Coaxial | No |
| Moisture Resistant | No |
| UV Resistant | No |
| Salt Spray Rated | No |
| Bracket Included | No |
| Dual Voice Coil (SDI) | No |
