MartinLogan
839IW5LCR
Speaker (L/R)in-wall
Sens.:89 dBImp.:8ΩConfig:2-wayMount:in-wall

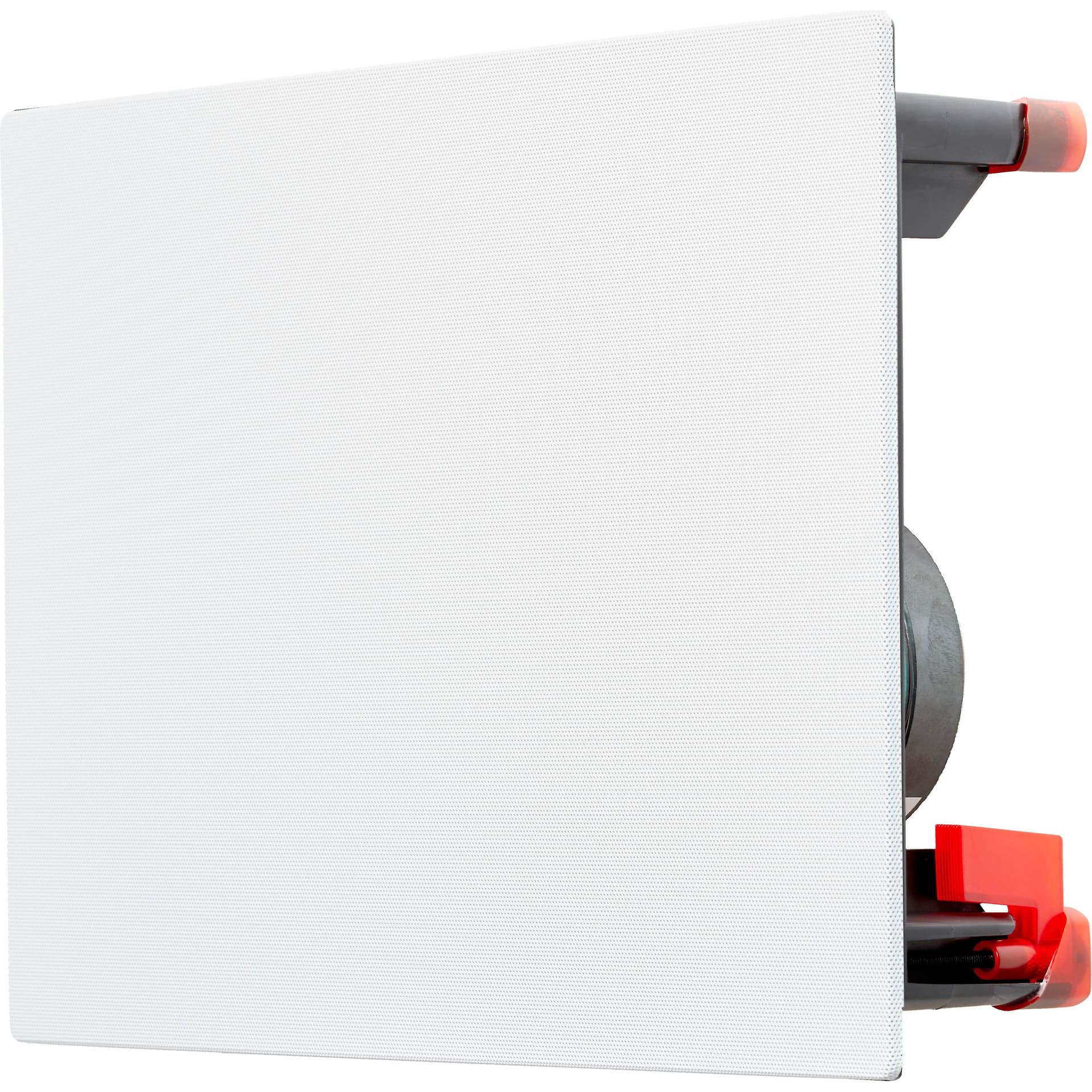

MartinLogan Installer Series IW5-LCR In-Wall LCR Speaker
Retailer Prices
No price availablePrice History
Loading price history...
Related Products
No similar products found.
Specifications
General
| Brand | MartinLogan |
| Model | 839IW5LCR |
| Weight | 5.9 lbs |
| Dimensions (W x H x D) | 12.6875 x 9.3125 x 3" |
Performance
| Sensitivity | 89dB |
| Impedance | 8ΩEasy to Drive |
| Freq Response Low | 60Hz |
| Freq Response High | 20000Hz |
| Crossover | 2500Hz |
| Driver Config | 2-way |
Power Handling
| Rec. Power Max | 100W |
| Bi-Amp Capable | No |
Design
| Mounting Type | in-wall |
Installation
| Mounting Depth | 3" |
| Cutout Width | 11.625" |
| Cutout Height | 8.25" |
| Back Box Included | No |
| Back Box Required | No |
| Paintable Grille | Yes |
| Magnetic Grille | Yes |
Additional Specs
| Connector Type | binding post (12 AWG) |
| Angle Adjustable | No |
| Treble Attenuation Switch | No |
| LCR Capable | No |
| Coaxial | No |
| Moisture Resistant | No |
| UV Resistant | No |
| Salt Spray Rated | No |
| Bracket Included | No |
| Dual Voice Coil (SDI) | No |
