OSD Audio
ACE870
Speaker (L/R)in-ceiling
Sens.:88 dBImp.:8ΩConfig:2-wayMount:in-ceiling

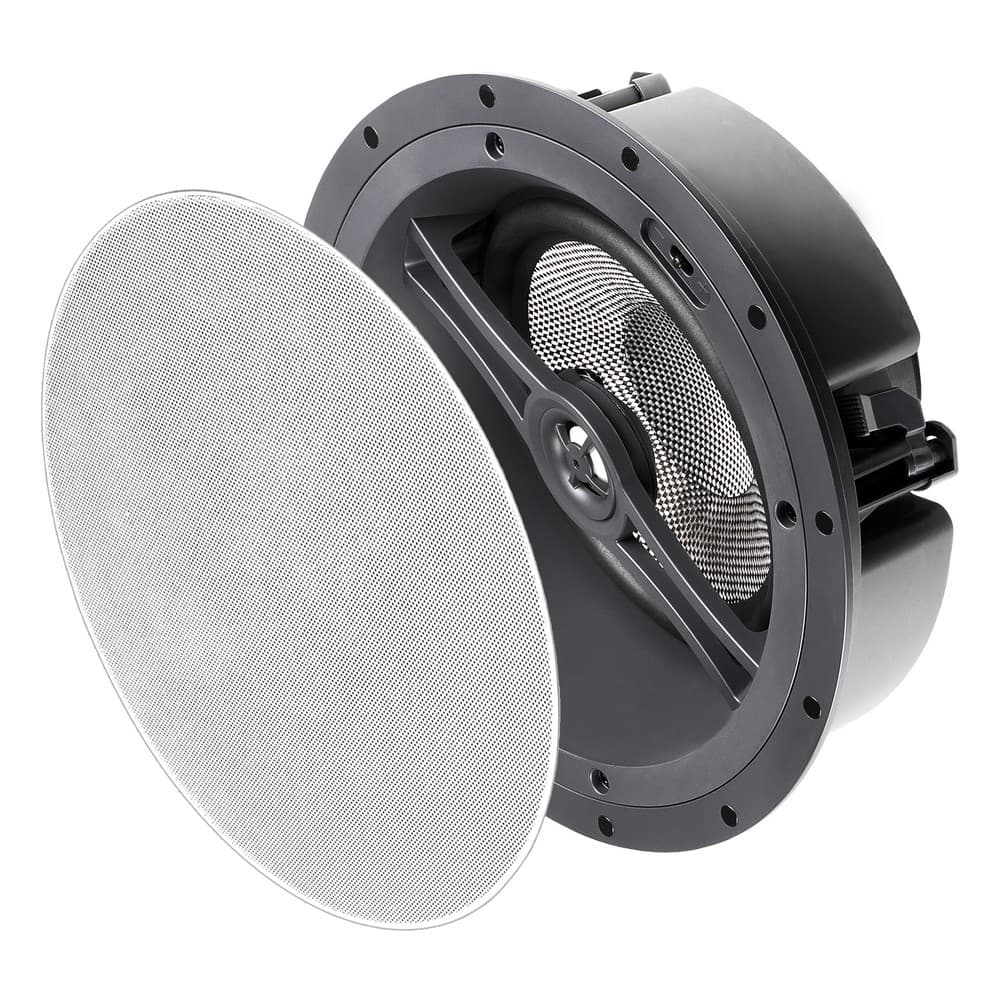

ACE870 8" Angled Trimless LCR In Ceiling Speaker, 1" Pivoting Tweeter Dolby Atmos® Ready, Single
Retailer Prices
No retailer pricing available
Price History
Loading price history...
Related Products
No similar products found.
Specifications
General
| Brand | OSD Audio |
| Model | ACE870 |
| Power Draw | 175W |
| Dimensions (W x H x D) | 11.5 x 11.5 x 5.37" |
Performance
| Sensitivity | 88dB |
| Impedance | 8ΩEasy to Drive |
| Freq Response Low | 35Hz |
| Freq Response High | 20000Hz |
| Driver Config | 2-way |
Power Handling
| Rec. Power Min | 175W |
| Bi-Amp Capable | No |
Design
| Mounting Type | in-ceiling |
Installation
| Mounting Depth | 5.37" |
| Cutout Diameter | 9.87" |
| Installation Type | in-ceiling |
| Back Box Included | No |
| Back Box Required | No |
| Paintable Grille | Yes |
| Magnetic Grille | No |
Additional Specs
| Angle Adjustable | Yes |
| Treble Attenuation Switch | No |
| LCR Capable | Yes |
| Coaxial | No |
| Moisture Resistant | No |
| UV Resistant | No |
| Salt Spray Rated | No |
| Bracket Included | No |
| Dual Voice Coil (SDI) | No |
